CPC1311
• CPU: Intel Atom: E3845: 1.91 GHz, 4x core, (CPC1311-01 version); E3825: 1.33 GHz, 2x cores, (CPC1311-02 version) E3827: 1.75 GHz, 2x cores, (CPC1311-03 version)
• L1-Cache (32 KB of instructions, 24 KB of data); L2-Cache 1024 KB
• RAM: DDR3L-1066/1333 SDRAM up to 4 GB with ECC support
• SSD SATA Flash-drive: 4 GB (SLC NAND Flash)
• Watchdog timer: 1.2 sec …10 sec
• Operating temperature range: –40°C up to +85°C
• Power supply: from COM-Express connector with extended range (from 4.75 V to 20 V)
• Input is equipped with overvoltage protection and pulse interference protection
• OS support: Linux 2.6; QNX 6.5; Microsoft Windows Embedded Standard 8; Microsoft Windows Embedded Standard 7
• L1-Cache (32 KB of instructions, 24 KB of data); L2-Cache 1024 KB
• RAM: DDR3L-1066/1333 SDRAM up to 4 GB with ECC support
• SSD SATA Flash-drive: 4 GB (SLC NAND Flash)
• Watchdog timer: 1.2 sec …10 sec
• Operating temperature range: –40°C up to +85°C
• Power supply: from COM-Express connector with extended range (from 4.75 V to 20 V)
• Input is equipped with overvoltage protection and pulse interference protection
• OS support: Linux 2.6; QNX 6.5; Microsoft Windows Embedded Standard 8; Microsoft Windows Embedded Standard 7
Overview
Downloads
Sales & technical support

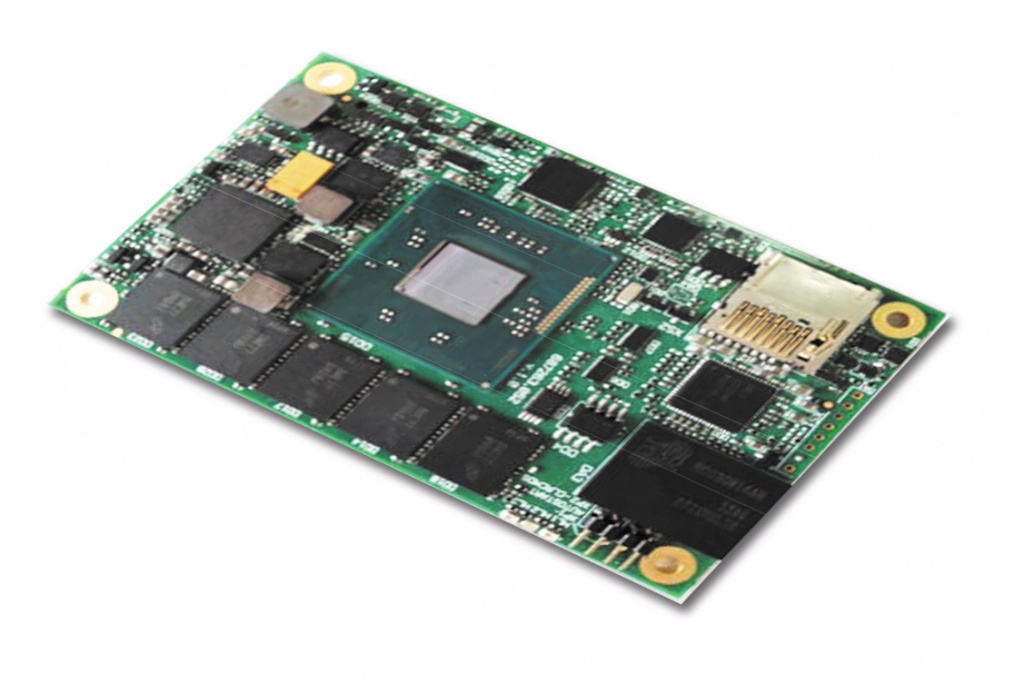

The mezzanine CPU-module COM Express mini, Type 10, 55x84 mm is designed for building of highly reliable embedded power-efficient systems with compact sizes. The module corresponds to the "PICMG COM.0 COM Express Module Base Specification Revision 2.1"
Datasheet
(PDF 0.7 MB)
